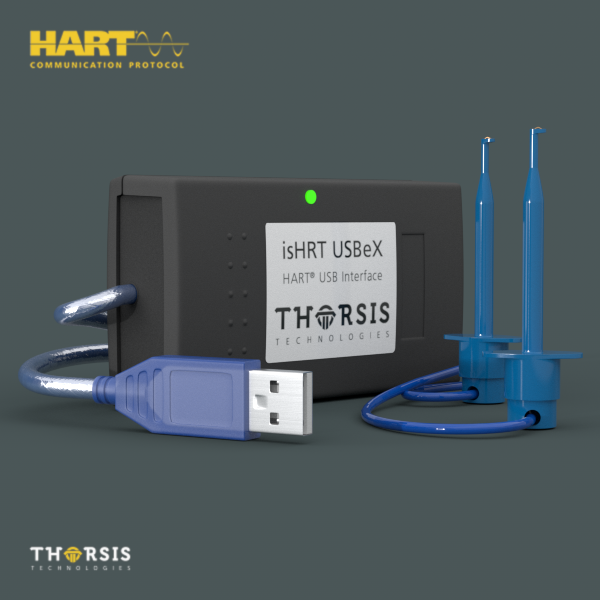

ATEX certified HART USB Interface
| article number | 14300-0201 |
| interface | USB |
| controller | CY7C68014A |
| modem chip | HT2012 |
| connector | 2-pole current terminal |
| length USB cable | about 1.5 m |
| length HART cable | about 1.5 m |
| operation | up to 16 interface modules in parallel mode |
| power supply | via USB |
| galvanic decoupling | yes |
| transmission rate | 1200 Bit/s (600 Bit/s optionally) |
| RoHs2-conform | yes |
| ATEX certification | isHRT USBeX Ex II(2)G [Ex ia Gb] IIC |
| driver software | Windows XP, Vista, Windows 7, 8, 10, 11 |
| delivery content | hardware, driver, HART Starter pack, documentation German and English on USB stick |
| compatible with | HFC OPC Server (HART Communication Foundation), Simatic PDM (all versions), FDT frame applications |
| available software | isH@RT Device DTM, isHRT CommDTM (FDT 1.2.1) |
Contact
Request an offer
Support request
SDK request
Downloads
For use in hazardous areas we provide an intrinsically safe, ATEX certified HART USB interface. The interface may be attached to HART loops for Zone 1. The functionality of the isHRT USBeX is identical to the isHRT USB interface.
