FOUNDATION Fieldbus USB interface
| article number | 16300-0101 |
| Interface | USB 2.0 |
| Transmission rate USB | 480 MBit/s (High-Speed), 12 MBit/s (Full-Speed) |
| FF-interface | H1, Linkmaster |
| Transmission rate FF | 31,25 kBit/s |
| Transmitter supply voltage | 22 ... 24 V, max. 15 mA |
| Controller | Motorola Coldfire |
| Flash | 256 kB |
| RAM | 256 kB |
| Temperature range | 0 °C … 60 °C |
| RoHs2-conform | yes |
| Driver software | Windows XP, Windows 7, 8, 10, 11 |
| Dimensions | 105 x 54 x 30 mm (basic device), 36 x 35 x 16 mm (bus connector) |
| Delivery content | Hardware, Driver, Configuration- and Testsoftware; Documentation German and English on a USB stick |
| Available software | FDT 1.2 (isFF CommDTM) |
Contact
Request an offer
Support request
Downloads
Description

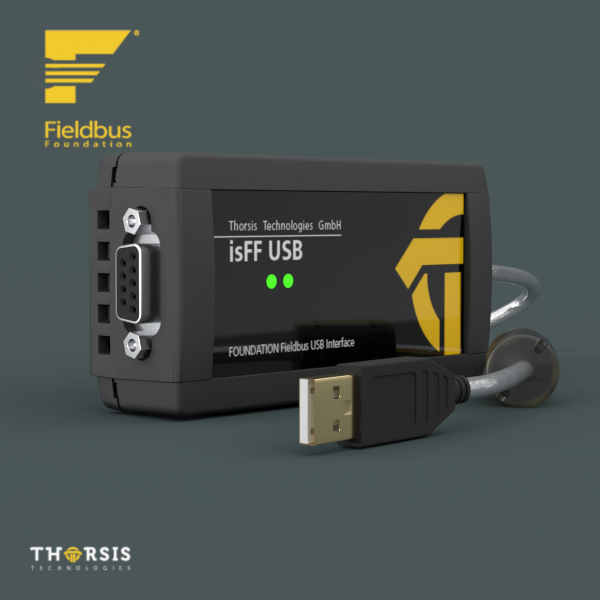

The isFF USB Interface is a FOUNDATION Fieldbus USB interface, that is made for rapid commissioning of FOUNDATION Fieldbus devices. Due to power supply from USB and plug-and-play functionality, it is ready for use within few minutes. Each FDT-capable application can be used as a software tool provided by a FDT 1.2-compliant communication-DTM.
The isFF USB enables optional power supply of one FOUNDATION Fieldbus Field device by an integrated current feed source. Therefore it is especially suitable as a tool for bench top commissioning; expensive wiring and additional power supply can be avoided. Of course, it is also possible to connect the isFF USB to an existing network segment.
